cdfnorm

Computes the element-wise cumulative normal distribution function of vector elements.

Description

The cdfnorm function computes the cumulative normal distribution function values for elements of the input vector a and writes them to the output vector y.

The cumulative normal distribution function is defined as given by:

\mathrm{CdfNorm} (x) = \frac{1}{\sqrt{2\pi}} \int_{-\infty}^x e^{-t^2}dt

Useful relations:

\mathrm{cdfnorm} (x) = \frac{1}{2} (1 + \mathrm{erf} (\frac{x}{\sqrt{2}})) = 1 - frac{1}{2} \mathrm{erfc} (\frac{x}{\sqrt{2}})

where erf and erfc are the error and complementary error functions.

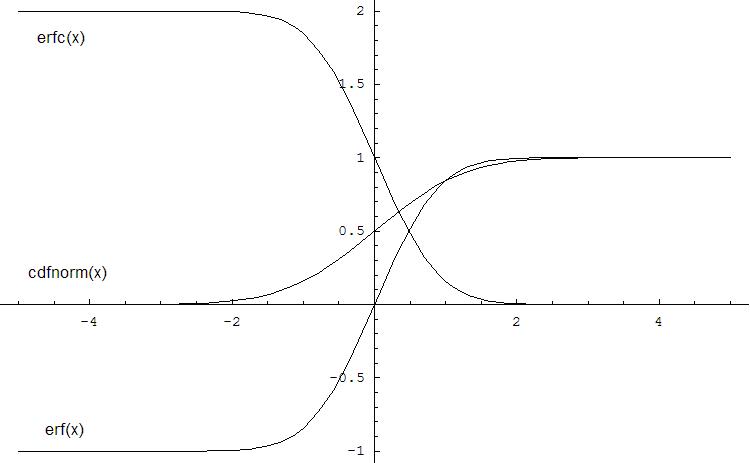

The following figure illustrates the relationships among erf family functions (erf, erfc, cdfnorm).

cdfnorm Family Functions Relationship

cdfnorm Family Functions Relationship

Useful relations for these functions:

\mathrm{erf} (x) + \mathrm{erfc} = 1

\mathrm{cdfnorm} (x) = \frac{1}{2} (1 + \mathrm{erf} (\frac{x}{\sqrt{2}})) = 1 - frac{1}{2} \mathrm{erfc} (\frac{x}{\sqrt{2}})

Argument

Result

Error Code

a < underflow

+0

status::underflow

+\infty

+1

-\infty

+0

QNAN

QNAN

SNAN

QNAN

API

Syntax

Buffer API

namespace oneapi::mkl::vm {

sycl::event cdfnorm(sycl::queue & exec_queue,
      std::int64_t n,
      sycl::buffer<T> & a,
      sycl::buffer<T> & y,
      oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined,
      oneapi::mkl::vm::error_handler<T> errhandler = {});

}

namespace oneapi::mkl::vm {

sycl::event cdfnorm(sycl::queue & exec_queue,
      sycl::buffer<T> & a,
      oneapi::mkl::slice sa,
      sycl::buffer<T> & y,
      oneapi::mkl::slice sy,
      oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined,
      oneapi::mkl::vm::error_handler<T> errhandler = {});

}

USM API

namespace oneapi::mkl::vm {

sycl::event cdfnorm(sycl::queue & exec_queue,
      std::int64_t n,
      T const * a,
      T * y,
      std::vector<cl::sycl::event> const & depends = {},
      oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined,
      oneapi::mkl::vm::error_handler<T> errhandler = {});

}

namespace oneapi::mkl::vm {

sycl::event cdfnorm(sycl::queue & exec_queue,
      T const * a,
      oneapi::mkl::slice sa,
      T * y,
      oneapi::mkl::slice sy,
      std::vector<cl::sycl::event> const & depends = {},
      oneapi::mkl::vm::mode mode = oneapi::mkl::vm::mode::not_defined,
      oneapi::mkl::vm::error_handler<T> errhandler = {});

}

cdfnorm supports the following precisions and devices:

T

Devices supported

float

Host, CPU, and GPU

double

Host, CPU, and GPU

Input Parameters

Buffer API

exec_queue

The queue where the routine should be executed.

n

Specifies the number of elements to be calculated.

a

The buffer containing the input vector.

sa

Slice selector for a. See Data Types for a description of the oneMKL slice type.

sy

Slice selector for y. See Data Types for a description of the oneMKL slice type.

mode

Overrides the global VM mode setting for this function call. See set_mode function for possible values and their description. This is an optional parameter. The default value is mode::not_defined.

errhandler

Sets local error handling mode for this function call. See the create_error_handler function for arguments and their descriptions. This is an optional parameter. The local error handler is disabled by default.

USM API

exec_queue

The queue where the routine should be executed.

n

Specifies the number of elements to be calculated.

a

Pointer to the input vector.

sa

Slice selector for a. See Data Types for a description of the oneMKL slice type.

sy

Slice selector for y. See Data Types for a description of the oneMKL slice type.

depends

Vector of dependent events (to wait for input data to be ready). This is an optional parameter. The default is an empty vector.

mode

Overrides the global VM mode setting for this function call. See the set_mode function for possible values and their description. This is an optional parameter. The default value is mode::not_defined.

errhandler

Sets local error handling mode for this function call. See the create_error_handler function for arguments and their descriptions. This is an optional parameter. The local error handler is disabled by default.

Output Parameters

Buffer API

y

The buffer containing the output vector.

return value (event)

Computation end event.

USM API

y

Pointer to the output vector.

return value (event)

Computation end event.

Examples

An example of how to use cdfnorm can be found in the oneMKL installation directory, under:

examples/dpcpp/vml/source/vcdfnorm.cpp
