Copies pixels values between two images and adds the border pixels.
Syntax
Case 1: Not-in-place operation
IppStatus ippiCopyWrapBorder_32s_C1R(const Ipp32s* pSrc, int srcStep, IppiSize srcRoiSize, Ipp32s* pDst, int dstStep, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth);
IppStatus ippiCopyWrapBorder_32f_C1R(const Ipp32f* pSrc, int srcStep, IppiSize srcRoiSize, Ipp32f* pDst, int dstStep, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth);
Case 2: In-place operation
IppStatus ippiCopyWrapBorder_32s_C1IR(const Ipp32s* pSrc, int srcDstStep, IppiSize srcRoiSize, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth);
IppStatus ippiCopyWrapBorder_32f_C1IR(const Ipp32f* pSrc, int srcDstStep, IppiSize srcRoiSize, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth);
Parameters
pSrc |
Pointer to the source image ROI. |
srcStep |
Distance in bytes between starts of consecutive lines in the source image. |
pDst |
Pointer to the destination image ROI. |
dstStep |
Distance in bytes between starts of consecutive lines in the destination image. |
srcDstStep |
Distance in bytes between starts of consecutive lines in the source and destination image for in-place flavor. |
srcRoiSize |
Size of the source ROI in pixels. |
dstRoiSize |
Size of the desctination ROI in pixels. |
topBorderHeight |
Height of the top border in pixels. |
leftBorderWidth |
Width of the left border in pixels. |
Description
The function ippiCopyWrapBorder is declared in the ippi.h file. It operates with ROI (see Regions of Interest in Intel IPP).

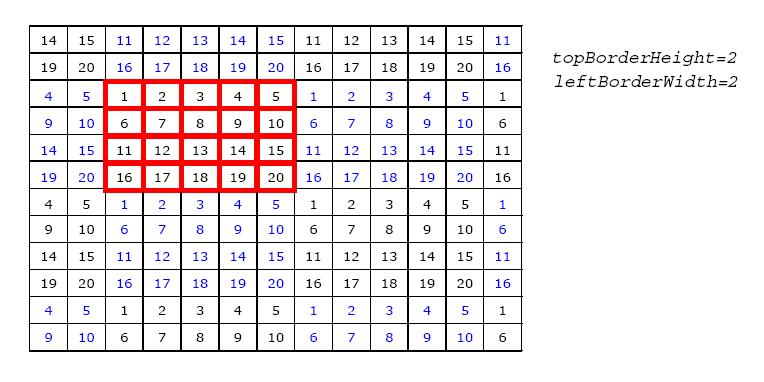

This function copies the source image pSrc to the destination image pDst and fills pixels ("border") outside the copied area in the destination image with the values of the source image pixels according to the scheme illustrated in Figure Creating a Border of Pixels by ippiCopyWrapBorder Function. Squares marked in red correspond to pixels copied from the source image.
Note that the in-place function flavor actually adds border pixels to the source image ROI, thus a destination image ROI is larger than the initial image.
The parameters topBorderHeight and leftBorderWidth specify the position of the first pixel of the source ROI in the destination image ROI.
Example “Using ippiCopyWrapBorder” shows how to use the ippiCopyWrapBorder_32s_C1R function.
The height (width) of the destination ROI cannot be less than the sum of the height (width) of source ROI and the topBorderHeight (leftBorderWidth) parameter.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error or a warning. |
ippStsNullPtrErr |
Indicates an error when any of the specified pointers is NULL. |
ippStsSizeErr |
Indicates an error condition if srcRoiSize or dstRoiSize has a field with a zero or negative value, or topBorderHeight or leftBorderWidth is less than zero, or dstRoiSize.width < srcRoiSize.width + leftBorderWidth, or dstRoiSize.height < srcRoiSize.height + topBorderHeight. |
ippStsStepErr |
Indicates an error condition if srcStep or dstStep has a zero or negative value. |
ippStsNotEvenStepErr |
Indicates an error condition if one of the step values is not divisible by 4 for floating point images, or by 2 for short integer images. |
Using ippiCopyWrapBorder
Ipp32s src[8*4] = {
5, 4, 3, 4, 5, 8, 8, 8,
3, 2, 1, 2, 3, 8, 8, 8,
3, 2, 1, 2, 3, 8, 8, 8,
5, 4, 3, 4, 5, 8, 8, 8
};
Ipp32s dst[9*8];
IppiSize srcRoi = { 5, 4 };
IppiSize dstRoi = { 9, 8 };
int topborderHeight = 2;
int leftborderWidth = 2;
ippiCopyWrapBorder_32s_C1R (src, 8*sizeof(Ipp32s), srcRoi, dst,
9*sizeof(Ipp32s), dstRoi, topBorderHeight, leftBorderWidth);
Results
source image:
5 4 3 4 5 8 8 8
3 2 1 2 3 8 8 8
3 2 1 2 3 8 8 8
5 4 3 4 5 8 8 8
destination image:
2 3 3 2 1 2 3 3 2
4 5 5 4 3 4 5 5 4
4 5 5 4 3 4 5 5 4
2 3 3 2 1 2 3 3 2
2 3 3 2 1 2 3 3 2
4 5 5 4 3 4 5 5 4
4 5 5 4 3 4 5 5 4
2 3 3 2 1 2 3 3 2
