Copies pixels values between two images and adds the border pixels with a constant value.
Syntax
Case 1: Operation on one-channel data
IppStatus ippiCopyConstBorder_<mod>(const Ipp<datatype>* pSrc, int srcStep, IppiSize srcRoiSize, Ipp<datatype>* pDst, int dstStep, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth, Ipp<datatype> value);
Supported values for mod:
| 8u_C1R | 16u_C1R | 16s_C1R | 32s_C1R | 32f_C1R |
Case 2: Operation on multi-channel data
IppStatus ippiCopyConstBorder_<mod>(const Ipp<datatype>* pSrc, int srcStep, IppiSize srcRoiSize, Ipp<datatype>* pDst, int dstStep, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth, const Ipp<datatype> value[3]);
Supported values for mod:
| 8u_C3R | 16u_C3R | 16s_C3R | 32s_C3R | 32f_C3R |
| 8u_AC4R | 16u_AC4R | 16s_AC4R | 32s_AC4R | 32f_AC4R |
IppStatus ippiCopyConstBorder_<mod>(const Ipp<datatype>* pSrc, int srcStep, IppiSize srcRoiSize, Ipp<datatype>* pDst, int dstStep, IppiSize dstRoiSize, int topBorderHeight, int leftBorderWidth, const Ipp<datatype> value[4]);
Supported values for mod:
| 8u_C4R | 16u_C4R | 16s_C4R | 32s_C4R | 32f_C4R |
Parameters
pSrc |
Pointer to the source image ROI. |
srcStep |
Distance in bytes between starts of consecutive lines in the source image. |
pDst |
Pointer to the destination image. |
dstStep |
Distance in bytes between starts of consecutive lines in the destination image. |
srcRoiSize |
Size of the source ROI in pixels. |
dstRoiSize |
Size of the desctination ROI in pixels. |
topBorderHeight |
Height of the top border in pixels. |
leftBorderWidth |
Width of the left border in pixels. |
value |
The constant value to assign to the border pixels (constant vector in case of multi-channel images). |
Description
The function ippiCopyconstBorder is declared in the ippi.h file. It operates with ROI (see Regions of Interest in Intel IPP).

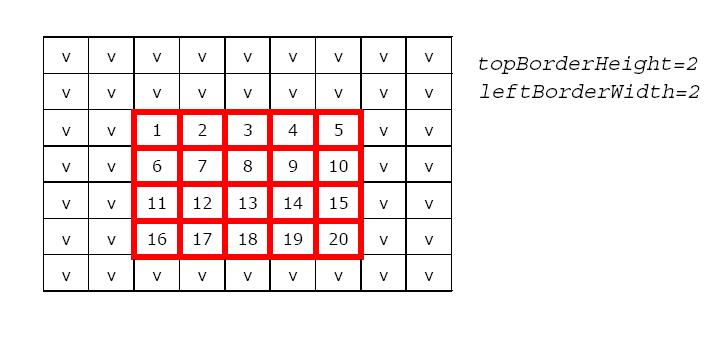

This function copies the source image pSrc to the destination image pDst and creates border outside the copied area; pixel values of the border are set to the specified constant value that is passed by the value argument. The parameters topBorderHeight and leftBorderWidth specify the position of the first pixel of the source ROI in the destination image ROI (see Figure Creating a Border of Pixels with Constant Value.) Squares marked in red correspond to pixels copied from the source image, that is, the source image ROI.
Example “Using ippiCopyConstBorder” shows how to use the function ippiCopyConstBorder_8u_C1R.
The height (width) of the destination ROI cannot be less than the sum of the height (width) of source ROI and the topBorderHeight (leftBorderWidth) parameter.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error or a warning. |
ippStsNullPtrErr |
Indicates an error when any of the specified pointers is NULL. |
ippStsSizeErr |
Indicates an error condition if srcRoiSize or dstRoiSize has a field with a zero or negative value, or topBorderHeight or leftBorderWidth is less than zero, or dstRoiSize.width < srcRoiSize.width + leftBorderWidth, or dstRoiSize.height < srcRoiSize.height + topBorderHeight. |
ippStsStepErr |
Indicates an error condition if srcStep or dstStep has a zero or negative value. |
Using ippiCopyConstBorder
Ipp8u src[8*4] = {3, 3, 3, 3, 3, 8, 8, 8,
3, 2, 1, 2, 3, 8, 8, 8,
3, 2, 1, 2, 3, 8, 8, 8,
3, 3, 3, 3, 3, 8, 8, 8};
Ipp8u dst[8*6];
IppiSize srcRoi = { 5, 4 };
IppiSize dstRoi = { 7, 6 };
int borderWidth = 1;
int borderHeight = 1;
int borderVal = 0;
ippiCopyConstBorder_8u_C1R(src, 8, srcRoi, dst, 8, dstRoi, borderHeight, borderWidth, borderVal);
Results
source image:
3 3 3 3 3 8 8 8
3 2 1 2 3 8 8 8
3 2 1 2 3 8 8 8 src
3 3 3 3 3 8 8 8
destination image:
0 0 0 0 0 0 0
0 3 3 3 3 3 0
0 3 2 1 2 3 0
0 3 2 1 2 3 0 dst
0 3 3 3 3 3 0
0 0 0 0 0 0 0
