WTInv

Syntax

Parameters

pApproxSrc

Pointer to ROI of the source approximation image.

approxStep

Distance in bytes between starts of consecutive lines in the approximation image buffer.

pDetailXSrc

Pointer to ROI of the source horizontal detail image.

detailXStep

Distance in bytes between starts of consecutive lines in the horizontal detail image buffer.

pDetailYSrc

Pointer to ROI of the source vertical detail image.

detailYStep

Distance in bytes between starts of consecutive lines in the vertical detail image buffer.

pDetailXYSrc

Pointer to ROI of the source diagonal detail image.

detailXYStep

Distance in bytes between starts of consecutive lines in the diagonal detail image buffer.

srcRoiSize

Size of ROI in pixels for all source images.

pDst

Pointer to the destination image ROI.

dstStep

Distance in bytes between starts of consecutive lines in the destination image buffer.

pSpec

Pointer to the allocated and initialized inverse DWT context structure.

pBuffer

Pointer to the allocated buffer for intermediate operations.

Description

The function ippiWTInv is declared in the ippi.h file. It operates with ROI (see Regions of Interest in Intel IPP ). This function performs wavelet reconstruction of the output image pDst from the four component images. See Figure “Image Division into Blocks with Overlapping Borders” for the equivalent algorithm of ippiWTInv function operation. Wavelet parameters are contained in the inverse transform context structure pSpec. It must be allocated and initialized by the function ippiWTInvInitAlloc beforehand.

The reconstruction function needs a buffer pBuffer for temporary calculations. Its size can be computed by calling the function ippiWTInvGetBufSize. The buffer size does not depend on the size of processed images, and the same buffer can be used for reconstructing images of different size. However, it is not recommended to use the same buffer in different threads in a multithreaded mode. For better performance, use an aligned memory location for this buffer, which can be allocated by the function ippiMalloc.

The pointers pApproxSrc, pDetailXSrc, pDetailYSrc, and pDetailXYSrc point to ROIs of source images excluding borders. All source ROIs have the same size srcRoiSize, while the destination image size is uniquely determined from the following relations:

dstWidth = 2 * srcRoiSize .width; dstHeight = 2 * srcRoiSize.height;

As source ROIs do not include border pixels required to computations, the application program have to apply a border extension model (symmetrical, wraparound or another) to ROIs of all source images filling the neighboring memory locations. Note the border sizes may be different for different source images. The following C-language expressions can be used to calculate extended image border sizes:

    int leftBorderLow    = (lenLow - 1 - anchorLow) / 2;
    int leftBorderHigh   = (lenHigh - 1 - anchorHigh) / 2;
    int rightBorderLow   = (anchorLow + 1) / 2;
    int rightBorderHigh  = (anchorHigh + 1) / 2;
    int apprLeftBorder   = leftBorderLow;
    int apprRightBorder  = rightBorderLow;
    int apprTopBorder    = leftBorderLow;
    int apprBottomBorder = rightBorderLow;
    int detxLeftBorder   = leftBorderLow;
    int detxRightBorder  = rightBorderLow;
    int detxTopBorder    = leftBorderHigh;
    int detxBottomBorder = rightBorderHigh;
    int detyLeftBorder   = leftBorderHigh;
    int detyRightBorder  = rightBorderHigh;
    int detyTopBorder    = leftBorderLow;
    int detyBottomBorder = rightBorderLow;
    int detxyLeftBorder   = leftBorderHigh;
    int detxyRightBorder  = rightBorderHigh;
    int detxyTopBorder    = leftBorderHigh;
    int detxyBottomBorder = rightBorderHigh;

See the description of the function ippiWTInvInitAlloc for the explanation of the used parameters.

The above relations show that left and top borders always have equal size only for approximation and diagonal detail images. Right and bottom borders also have equal size only for approximation and diagonal detail images. Thus, the size of memory block allocated for each source image must be extended to accommodate for added border pixels outside ROI.

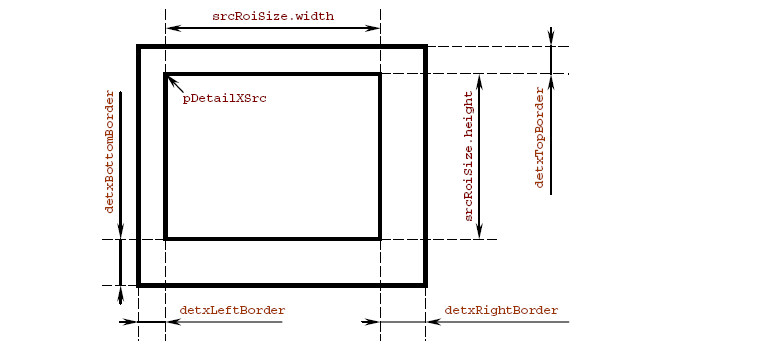

Figure “Extended Horizontal Detail Source Image for Wavelet Reconstruction” shows ROI and extended image area for the horizontal detail source image.

Extended Horizontal Detail Source Image for Wavelet Reconstruction

Sizes of source images extended by border pixels can be calculated as follows:

    apprWidthWithBorders  = srcWidth  + apprLeftBorder + apprRightBorder;
    apprHeightWithBorders = srcHeight + apprTopBorder  + apprBottomBorder;
    detxWidthWithBorders  = srcWidth  + detxLeftBorder + detxRightBorder;
    detxHeightWithBorders = srcHeight + detxTopBorder  + detxBottomBorder;
    detyWidthWithBorders  = srcWidth  + detyLeftBorder + detyRightBorder;
    detyHeightWithBorders = srcHeight + detyTopBorder  + detyBottomBorder;
    detxyWidthWithBorders  = srcWidth  + detxyLeftBorder + detxyRightBorder;
    detxyHeightWithBorders = srcHeight + detxyTopBorder  + detxyBottomBorder;

Example 13-1 shows how to use the function ippiWTInv_32f_C1R.

The ROI concept can be used to reconstruct large images by blocks or ‘tiles'.

To accomplish this, each the source images into blocks with overlapping borders, similar to what is considered in the description of the function ippiWTFwd. Each component must be subdivided into the same pattern of rectangular blocks.

Return Values

Using Intel IPP Functions for Wavelet Transforms

void func_wavelet() {

    IppiWTFwdSpec_32f_C1R* pSpec;

    IppiWTInvSpec_32f_C1R* pSpecInv;

    Ipp32f pTapsLow[3] = {0.25, 0.5, 0.25};

    int lenLow = 3;

    int anchorLow = 1;

    Ipp32f pTapsHigh[3] = { 0.75, -0.25, -0.125};

    int lenHigh = 3;

    int anchorHigh = 1;

    Ipp32f pSrc[8*8] = { 0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0

                         0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0,

                         0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0,

                        11.1, 11.1, 11.1, 11.1, 11.1, 11.1, 11.1, 11.1,

                        11.1, 11.1, 11.1, 11.1, 11.1, 11.1, 11.1, 11.1,

                         0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0,

                         0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0,

                         0.0,  0.0,  0.0, 11.1, 11.1,  0.0,  0.0,  0.0};

    Ipp32f pSrcB[9*9];

    int srcStepB = 9*sizeof(Ipp32f);

    IppiSize roiSizeB = {9, 9};

    int srcStep = 8*sizeof(Ipp32f);

    IppiSize roiSize = {8, 8};

    Ipp32f pDetailXDst[4*4];

    Ipp32f pDetailYDst[4*4];

    Ipp32f pDetailXYDst[4*4];

    Ipp32f pApproxDst[4*4];

    IppiSize dstRoiSize = {4, 4};

    int bufSize, bufSizeInv;

    Ipp8u* pBuffer;

    Ipp8u* pBufferInv;

    Ipp32f pDstInv[8*8];

    Ipp32f pAppB[5*5];

    Ipp32f pXB[5*5];

    Ipp32f pYB[5*5];

    Ipp32f pXYB[5*5];

    int StepB =  5*sizeof(Ipp32f);

    IppiSize roiInvSize = {4, 4};

    IppiSize roiInvSizeB = {5, 5};

    int stepDstInv = 8*sizeof(Ipp32f);

    int approxStep, detailXStep, detailYStep, detailXYStep;

    approxStep = detailXStep = detailYStep = detailXYStep = 4*sizeof(Ipp32f);

    //adds border to the source image

    ippiCopyWrapBorder_32s_C1R((Ipp32s*)pSrc, srcStep, roiSize, (Ipp32s*)pSrcB, srcStepB, roiSizeB, 1, 1);

    //performs forward  wavelet transform

    ippiWTFwdInitAlloc_32f_C1R ( &pSpec, pTapsLow, lenLow, anchorLow, pTapsHigh, lenHigh, anchorHigh);

    ippiWTFwdGetBufSize_C1R(pSpec, &bufSize);

    pBuffer = ippsMalloc_8u(bufSize);

    ippiWTFwd_32f_C1R (pSrcB + roiSizeB.width + 1, srcStepB, pApproxDst, approxStep, pDetailXDst,
detailXStep, pDetailYDst, detailYStep, pDetailXYDst, detailXYStep,
dstRoiSize, pSpec, pBuffer);

//------------------------------------

    ippiWTInvInitAlloc_32f_C1R (&pSpecInv, pTapsLow, lenLow, anchorLow, pTapsHigh, lenHigh, anchorHigh);

    ippiWTInvGetBufSize_C1R(pSpecInv, &bufSizeInv);

    pBufferInv = ippsMalloc_8u(bufSizeInv);

//adds border to four images obtained after ippiWTFwd

ippiCopyWrapBorder_32s_C1R((Ipp32s*)pApproxDst, approxStep, dstRoiSize, (Ipp32s*)pAppB, StepB, roiInvSizeB, 0, 0);

ippiCopyWrapBorder_32s_C1R((Ipp32s*)pDetailXDst, detailXStep, dstRoiSize, (Ipp32s*)pXB, StepB, roiInvSizeB, 0, 0);

ippiCopyWrapBorder_32s_C1R((Ipp32s*)pDetailYDst, detailYStep, dstRoiSize, (Ipp32s*)pYB, StepB, roiInvSizeB, 0, 0);


ippiCopyWrapBorder_32s_C1R((Ipp32s*)pDetailXYDst, detailXYStep, dstRoiSize, (Ipp32s*)pXYB, StepB, roiInvSizeB, 0, 0);

//performs inverse  wavelet transform

ippiWTInv_32f_C1R( pAppB, StepB, pXB, StepB, pYB, StepB, pXYB, StepB, roiInvSize, pDstInv, stepDstInv, pSpecInv,
pBufferInv);

ippiWTInvFree_32f_C1R (pSpecInv);

ippiWTFwdFree_32f_C1R (pSpec);

}

Result:

After WTFwd ->

  pApproxDst

0.0  2.8   8.3  0.0

2.8  4.9   9.0  2.8

8.3  9.0  10.4 8.3

0.0  2.8   8.3  0.0

   pDetailXDst

  0.0   1.0  3.1   0.0

  8.3   7.3  5.2   8.3

 -4.2  -2.1  2.1  -4.2

  0.0   1.0  3.1   0.0

   pDetailYDst

  0.0   8.3   -4.2   0.0

  1.0   7.3   -2.1   1.0

  3.1   5.2    2.1   3.1

  0.0   8.3   -4.2   0.0

   pDetailXYDst

  0.0   3.1   -1.6   0.0

  3.1   0.0    4.7   3.1

 -1.6   4.7   -4.7  -1.6

  0.0   3.1   -1.6   0.0

After WTFinv ->

        pDstInv

 0.0    2.8    -0.3   -0.6    2.1    1.1    0.0    0.0

 2.8    5.9     2.7    4.9    3.4    5.4    2.8    5.1

-0.3    2.7    -0.6   -1.2    2.2    0.7   -0.3   -0.5

-0.6    4.9    -1.2   -2.2    3.9    1.2   -0.6   -1.0

 2.1    3.4     2.2    3.9    1.8    3.7    2.1    3.8

 1.1    5.4     0.7    1.2    3.7    3.2    1.1    1.9

 0.0    2.8    -0.3   -0.6    2.1    1.1    0.0    0.0

 0.0    5.1    -0.5   -1.0    3.8    1.9    0.0    0.0
