ISPToLPC_AMRWB

Performs ISP to LP coefficients conversion.

Syntax

IppStatus ippsISPToLPC_AMRWB_16s(const Ipp16s* pSrcIsp, Ipp16s* pDstLpc, int len);

Parameters

pSrcIsp

Pointer to the input immittance spectral pairs.

pDstLpc

Pointer to the output predictor coefficients.

len

Number of ISP and LPC.

Description

This function is declared in ippsc.h file. The function performs the following steps:

1. Calculates the polynomial coefficients of F1(z) and F2(z) , using the recursive relations from i equal to 2 to len/2 by formulas

f1(i) = 2q2i-2 * f1(i-1) + 2f1(i-2)

for j=i-1 .. 2

f1(j) = f1(j) - 2q2i-2 * f1(j-1) + 2f1(j-2) end

f1(1) = f1(1) - 2q2i-2

with initial values f1(0) = 1 and f1(1) = -2q0.

The coefficients f2(i) are computed similarly by replacing q2i-2 by q2i-1 and len/2 by len/2-1, and with initial conditions f2(0) = 1 and f2(1) = -2q1.

2. Once the coefficients f1(z) and f2(z) are found, F2(z) is multiplied by 1-z-2 to obtain F'2(z) , that is

f'2(i) = f2(i) - f2(i-2), for i = 2, ..., len /2 - 1;

f'1(i) = f1(i) , for i = 0, ..., len /2.

Then F'1(z) and F'2(z) are multiplied by 1+qlen -1 and 1- qlen -1, respectively.

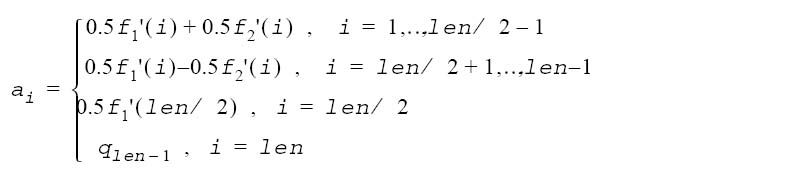

3. Finally, the function computes the LP coefficients from f'1(i) and f'2(i) as:



Return Values

ippStsNoErr

Indicates no error.

ippStsNullPtrErr

Indicates an error when one of the specified pointers is NULL.

IppStsSizeErr

Indicates an error when len is less than or equal to zero, or when len is greater than 20.
