Singular Value Decomposition: LAPACK Computational Routines

This topic describes LAPACK routines for computing the singular value decomposition (SVD) of a general m-by-n matrix A:

A = UΣV^H.

In this decomposition, U and V are unitary (for complex A) or orthogonal (for real A); Σ is an m-by-n diagonal matrix with real diagonal elements σ_i:

σ₁≥σ₂≥ ... ≥σ_{min(m, n)}≥ 0.

The diagonal elements σ_i are singular values of A. The first min(m, n) columns of the matrices U and V are, respectively, left and right singular vectors of A. The singular values and singular vectors satisfy

Av_i = σ_iu_i and A^Hu_i = σ_iv_i

where u_i and v_i are the i-th columns of U and V, respectively.

To find the SVD of a general matrix A, call the LAPACK routine ?gebrd or ?gbbrd for reducing A to a bidiagonal matrix B by a unitary (orthogonal) transformation: A = QBP^H. Then call ?bdsqr, which forms the SVD of a bidiagonal matrix: B = U₁ΣV₁^H.

Thus, the sought-for SVD of A is given by A = UΣV^H =(QU₁)Σ(V₁^HP^H).

Table "Computational Routines for Singular Value Decomposition (SVD)" lists LAPACK routines that perform singular value decomposition of matrices.

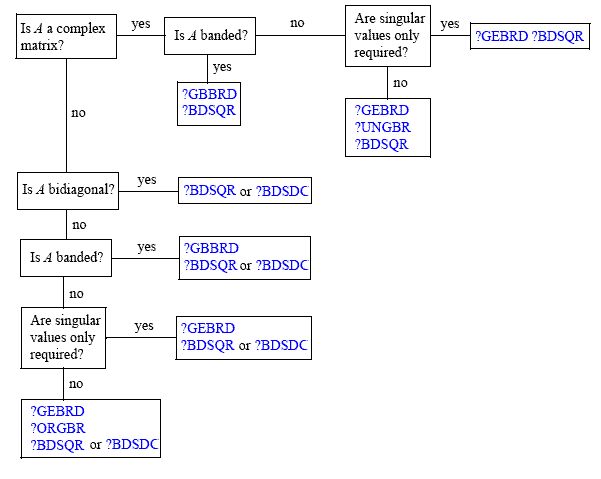

Decision Tree: Singular Value Decomposition

Figure "Decision Tree: Singular Value Decomposition" presents a decision tree that helps you choose the right sequence of routines for SVD, depending on whether you need singular values only or singular vectors as well, whether A is real or complex, and so on.

You can use the SVD to find a minimum-norm solution to a (possibly) rank-deficient least squares problem of minimizing ||Ax - b||². The effective rank k of the matrix A can be determined as the number of singular values which exceed a suitable threshold. The minimum-norm solution is

x = V_k(Σ_k)^-1c

where Σ_k is the leading k-by-k submatrix of Σ, the matrix V_k consists of the first k columns of V = PV₁, and the vector c consists of the first k elements of U^Hb = U₁^HQ^Hb.
