Performs color keying of two images.
Syntax
Case 1: Operation on one-channel data
IppStatus ippiCompColorKey_<mod>(const Ipp<datatype>* pSrc1, int src1Step, const Ipp<datatype>* pSrc2, int src2Step, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, Ipp<datatype> colorKey);
Supported values for mod:
| 8u_C1R | 16u_C1R | 16s_C1R |
Case 2: Operation on multi-channel data
IppStatus ippiCompColorKey_<mod>(const Ipp<datatype>* pSrc1, int src1Step, const Ipp<datatype>* pSrc2, int src2Step, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, Ipp<datatype> colorKey[3]);
Supported values for mod:
| 8u_C3R | 16u_C3R | 16s_C3R |
IppStatus ippiCompColorKey_<mod>(const Ipp<datatype>* pSrc1, int src1Step, const Ipp<datatype>* pSrc2, int src2Step, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, Ipp<datatype> colorKey[4]);
Supported values for mod:
| 8u_C4R | 16u_C4R | 16s_C4R |
Include Files
ippi.h
Domain Dependencies
Headers: ippcore.h, ippvm.h, ipps.h
Libraries: ippcore.lib, ippvm.lib, ipps.lib
Parameters
pSrc1, pSrc2 |
Pointer to the source images ROI. |
src1Step, src2Step |
Distances in bytes between starts of consecutive lines in the source images. |
pDst |
Pointer to the destination image ROI. |
dstStep |
Distance in bytes between starts of consecutive lines in the destination image. |
roiSize |
Size of the source and destination ROI in pixels. |
colorKey |
Value of the key color for 1-channel images, array of color values for multi-channel images. |
Description
This function operates with ROI (see Regions of Interest in Intel IPP).
This function replaces all areas of the source image pSrc1 containing the specified key color colorKey with the corresponding pixels of the background image pSrc2 and stores the result in the destination image pDst.

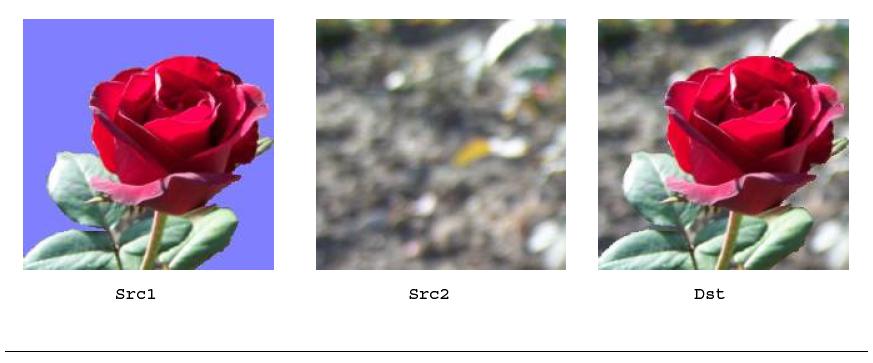

The Figure Applying the Function ippiCompColorKey to Sample Images shows an example of how the function ippiCompColorKey works.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error. |
ippStsNullPtrErr |
Indicates an error condition if one of the specified pointers is NULL. |
ippStsSizeErr |
Indicates an error condition if roiSize has a field with a zero or negative value. |
ippStsStepErr |
Indicates an error condition if one of the step values is less than or equal to 0. |
