SegmentWatershed

Syntax

Include Files

ippcv.h

Domain Dependencies

Headers: ippcore.h, ippvm.h, ipps.h, ippi.h

Libraries: ippcore.lib, ippvm.lib, ipps.lib, ippi.lib

Parameters

pSrc

Pointer to the source image ROI.

srcStep

Distance, in bytes, between the starting points of consecutive lines in the source image.

pMarker

Pointer to the ROI of the source and destination image of markers.

markerStep

Distance, in bytes, between the starting points of consecutive lines in the image with markers.

roiSize

Size of the source and destination image ROI, in pixels.

norm

Specifies the type of the norm to form the mask for marker propagation:

ippiNormInf	Infinity norm (8-connectivity, 3x3 rectangular mask)
ippiNormL1	L1 norm (4-connectivity, 3x3 cross mask)
ippiNormL2	Approximation of L2 norm (8-connectivity, 3x3 mask) [Bor86]
ippiNormFM	Fast marching distance [Telea04]

flag

Specifies the algorithm of segmentation. The value is a logical sum of the following mandatory values:

IPP_SEGMENT_QUEUE	Priority queue is used to define the order of pixel processing.
IPP_SEGMENT_DISTANCE	Distance transform algorithm is used for segmentation.

and the following optional values:

IPP_SEGMENT_BORDER_4	Pixels of the 4-connectivity border between image segments are marked with the IPP_MAX_8U (255) value.
IPP_SEGMENT_BORDER_8	Pixels of the 8-connectivity border between image segments are marked with the IPP_MAX_8U (255) value.

pBuffer

Pointer to the working buffer.

Description

This function operates with ROI (see Regions of Interest in Intel IPP).

This function performs marker-controlled watershed segmentation of the source image. Non-zero pixels of the pMarker image belong to water source markers. Marker values propagate through the whole image according to the watershed algorithm. Image segments are formed by groups of connected pMarker pixels with the same value. The parameter norm controls marker propagation connectivity. Watershed segmentation is preferable for images with local minimums, for example, gradient images. Image markers generally correspond to these local minimums and can be created, for example, manually or using morphological reconstruction.

The parameter flag specifies how watershed segmentation is performed. This parameter is a logical sum of two values among the following supported values:

• Mandatory values specifying the algorithm of segmentation:

  IPP_SEGMENT_QUEUE	Classic watershed segmentation scheme with the priority queue [Vincent91]
  IPP_SEGMENT_DISTANCE	Watershed segmentation by calculating the topographic distance for each pixel [Lotufo00], [Meyer94]

• Optional additional values of the flag: IPP_SEGMENT_BORDER_4 and IPP_SEGMENT_BORDER_8 specify the border of the segments. All pixels adjacent to the differently marked pixels are considered as border pixels, and their values are set to IPP_MAX_8U (255) for 8-bit markers, or IPP_MAX_16U (65535) for 16-bit markers. In this case, the value IPP_MAX_8U (IPP_MAX_16U) should not be used to mark segments. If these optional values are not specified, segments are formed without borders.

The function requires the working buffer pBuffer, which size should be computed by the function ippiSegmentWatershedGetBufferSize beforehand.

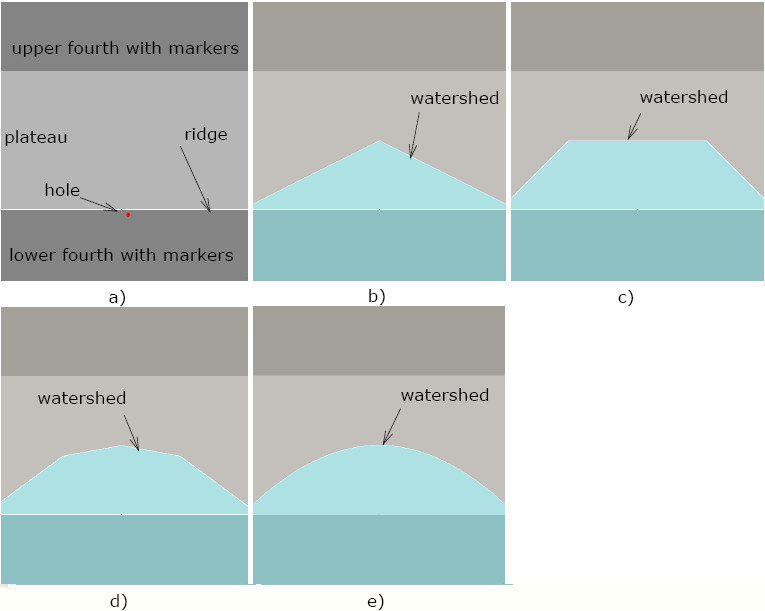

Figure “Watershed Segmentation with Different Norms” shows the plateau filling through the watershed segmentation with different values of the norm parameters. Initial image (a) has the labeled with markers upper and lower fourths with low pixel value, the central plateau between them, the ridge between the plateau and the lower forth with one pixel hole in the center of it. The following pictures are segmentation results: b) - for L1 norm (block distance), c)- Linf norm (chessboard distance), d) - approximate L2 (Euclidian) norm [Bor86], e) Fast Marching distance.

Watershed Segmentation with Different Norms
