Some of the Intel® IPP image processing functions operate on user-defined border types. It means that the values of border pixels are assigned in accordance with the borderType (or border) and borderValue parameters.
Intel® IPP supports the following border types:
- Constant border
- Replicated border
- Mirrored border
- Mirrored border with replication
- Border in memory
- Mixed borders
Constant Border

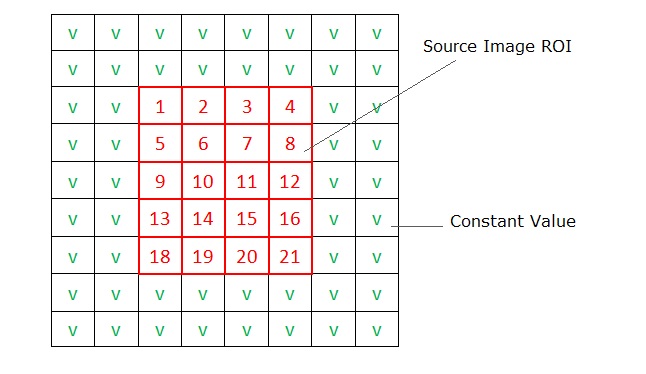

This type of border corresponds to the ippBorderConst value in the IppiBorderType enumerator. When using a constant border, values for all border pixels are set to the constant value that you specify in the borderValue parameter. In the figure below, this constant value is marked as V. Squares marked in red correspond to pixels copied from the source image ROI.
Replicated Border

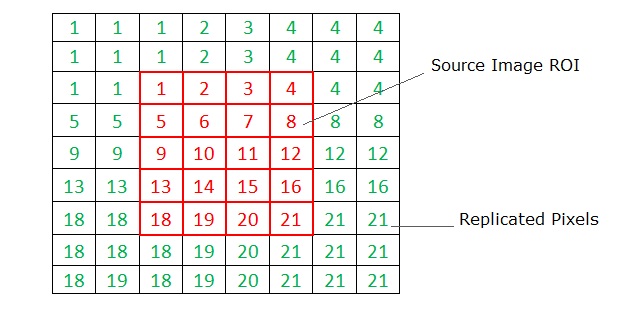

This type of border corresponds to the ippBorderRepl value in the IppiBorderType enumerator. When using a replicated border, values for border pixels are obtained from the source image boundary pixels, as shown in the figure below. Squares marked in red correspond to pixels copied from the source image ROI. Squares with green values correspond to border pixels, which are replicated from the boundary pixels of the source image.
Mirrored Border

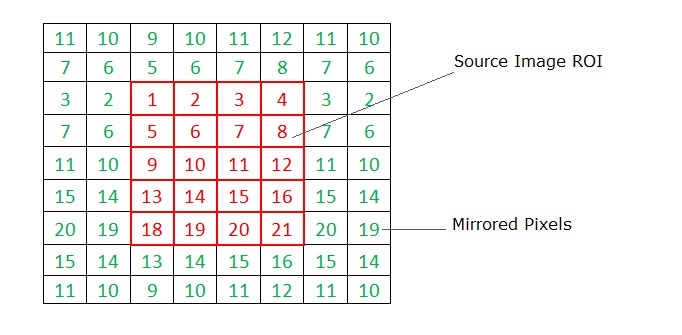

This type of border corresponds to the ippBorderMirror value in the IppiBorderType enumerator. When using a mirrored border, values for border pixels are obtained from the source image boundary pixels, as shown in the figure below. Squares marked in red correspond to pixels copied from the source image ROI. Squares with green values correspond to border pixels, which are mirrored from the source image pixels.
Mirrored Border with Replication

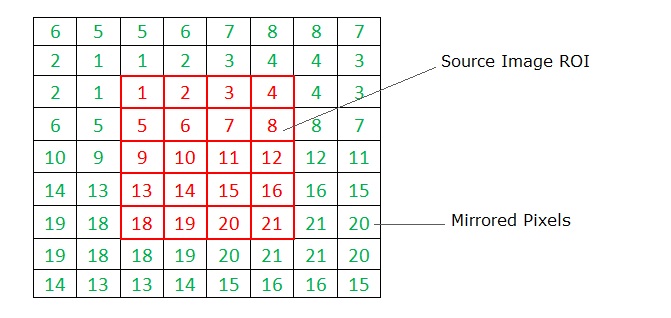

This type of border corresponds to the ippBorderMirrorR value in the IppiBorderType enumerator. When using a mirrored border with replication, values for border pixels are obtained from the source image boundary pixels, as shown in the figure below. Squares marked in red correspond to pixels copied from the source image ROI. Squares with green values correspond to border pixels, which are mirrored from the source image pixels. The difference of this border type from the mirrored border is that the anchor cell value is replicated to the border pixels.
Border in Memory

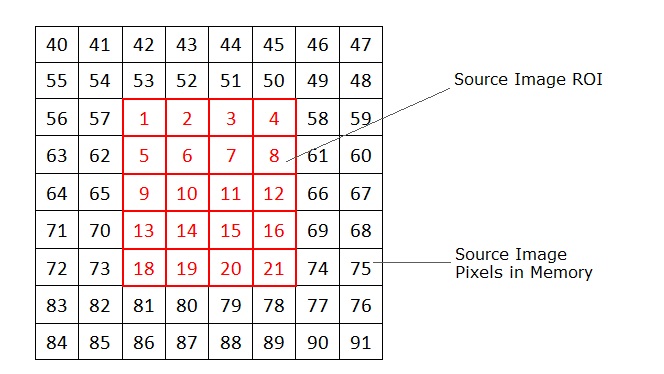

This type of border corresponds to the ippBorderInMem value and its flags combinations in the IppiBorderType enumerator. Use this border type if the ROI does not cover internal border pixels of the source image. In this case, values for border pixels are obtained from the source image pixels in memory. In the figure below, squares marked in red correspond to pixels copied from the source image ROI. Squares with black values correspond to source image pixels in memory.
Several Intel IPP filters operate in two or more stages. For example, the ippiMorphOpenBorder function performs filtering by applying the Erode and Dilate filters sequentially. You should note the following when setting borders for multistage filters:
- If you set the ippBorderInMem value or its flags combinations, the function tries to access pixels outside of image borders to get border pixels for each filtering stage. For example, the ippiMorphOpenBorder function uses two stages and with 5x5 mask will access floor(5/2)*2=4 pixels in each direction across the current ROI.
- If you set ippBorderFirstStageInMem, the function tries to access floor(5/2)=2 pixels outside of the image borders to get pixels for the first stage of filtering. The second filter will use one of the following border types to reconstruct image borders: ippBorderRepl, ippBorderConst, ippBorderMirror, or ippBorderMirrorR. To specify the border type for the second and next stages, use the bitwise OR operation between one of the listed above border types and ippBorderFirstStageInMem.
Mixed Borders
You can use mixed borders by using a bitwise OR operation between one of the ippBorderRepl, ippBorderConst, ippBorderMirror, or ippBorderMirrorR types and any of the following border types: ippBorderInMemTop, ippBorderInMemBottom, ippBorderInMemLeft, ippBorderInMemRight, or ippBorderFirstStageInMem. In this case, values for border pixels are obtained from the source image pixels in memory in the direction specified by the flag.

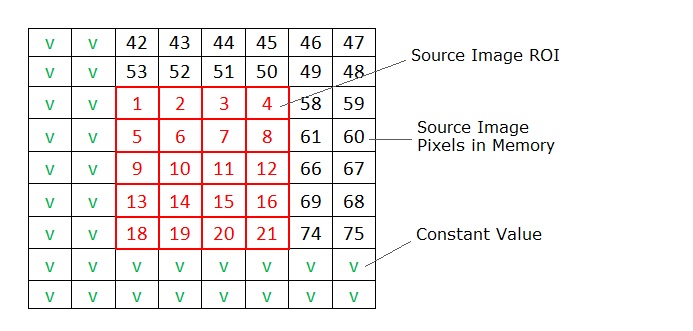

The figure below demonstrates the use of the ippBorderConst with the ippBorderInMemTop and ippBorderInMemRight borders. Squares marked in red correspond to pixels copied from the source image, that is the source image ROI. As you can see from the figure, top and right border pixels are obtained from the source image pixels in memory, while the rest of the border pixels are set to the constant value V.
Note
The combination of ippBorderInMem and its flags always has priority over any other border flags or types. For example, if you specify ippBorderFirstStageInMem|ippBorderRepl|ippBorderInMemLeft, the left border will use InMem mode for each stage and other borders will use InMem for the first stage and replication for remaining stages.
The figure below demonstrates the use of the ippBorderConst with the ippBorderInMemTop, ippBorderInMemRight, and ippBorderFirstStageInMem flags for two-stage filtering with one pixel border for both stages.

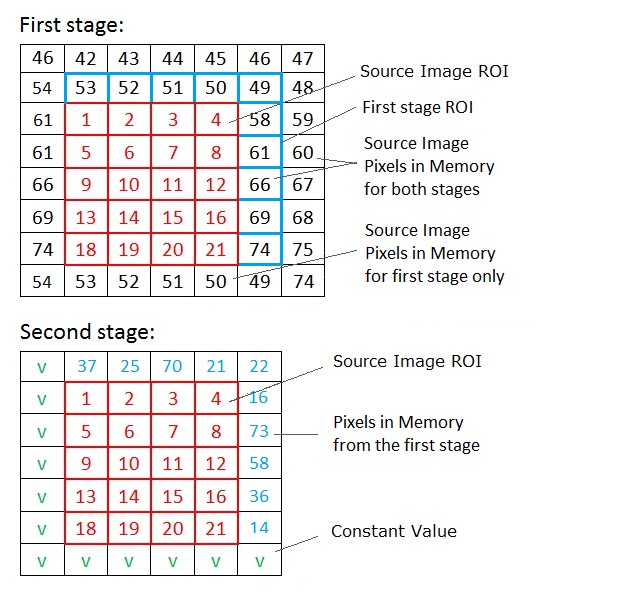

- First stage: squares marked in red correspond to pixels copied from the source image, which is the source image ROI, and squares marked in blue correspond to ROI assigned to the first stage filter. As you can see from the figure, the first stage enlarges ROI for top and right sides to consume more memory and provide valid pixels for the second stage memory border.
- Second stage: red squares and blue pixels correspond to resulting pixels from the first stage filter. Blue pixels lie outside of the ROI providing border values for the second stage in top and right directions. Left and bottom border pixels use the constant value V in accordance with the border flags combination.
