MODIFIED API. Maps an image by applying intensity transformation.
Syntax
Case 1: Not-in-place operation on one-channel integer data
IppStatus ippiLUT_<mod>(const Ipp<datatype>* pSrc, int srcStep, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C1R | 16u_C1R | 16s_C1R |
Case 2: Not-in-place operation on multi-channel integer data
IppStatus ippiLUT_<mod>(const Ipp<datatype>* pSrc, int srcStep, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C3R | 16u_C3R | 16s_C3R |
| 8u_AC4R | 16u_AC4R | 16s_AC4R |
IppStatus ippiLUT_<mod>(const Ipp<datatype>* pSrc, int srcStep, Ipp<datatype>* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C4R | 16u_C4R | 16s_C4R |
Case 3: Not-in-place operation on one-channel floating-point data
IppStatus ippiLUT_32f_C1R(const Ipp32f* pSrc, int srcStep, Ipp32f* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Case 4: Not-in-place operation on multi-channel floating-point data
IppStatus ippiLUT_<mod>(const Ipp32f* pSrc, int srcStep, Ipp32f* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 32f_C3R |
| 32f_AC4R |
IppStatus ippiLUT_32f_C4R(const Ipp32f* pSrc, int srcStep, Ipp32f* pDst, int dstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Case 5: In-place operation on one-channel integer data
IppStatus ippiLUT_<mod>(Ipp<datatype>* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C1IR | 16u_C1IR | 16s_C1IR |
Case 6: In-place operation on multi-channel integer data
IppStatus ippiLUT_<mod>(Ipp<datatype>* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C3IR | 16u_C3IR | 16s_C3IR |
| 8u_AC4IR | 16u_AC4IR | 16s_AC4IR |
IppStatus ippiLUT_<mod>(Ipp<datatype>* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 8u_C4IR | 16u_C4IR | 16s_C4IR |
Case 7: In-place operation on one-channel floating-point data
IppStatus ippiLUT_32f_C1IR(Ipp32f* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Case 8: In-place operation on multi-channel floating-point data
IppStatus ippiLUT_<mod>(Ipp32f* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Supported values for mod:
| 32f_C3IR |
| 32f_AC4IR |
IppStatus ippiLUT_32f_C4IR(Ipp32f* pSrcDst, int srcDstStep, IppiSize roiSize, IppiLUT_Spec* pSpec);
Include Files
ippi.h
Domain Dependencies
Headers: ippcore.h, ippvm.h, ipps.h
Libraries: ippcore.lib, ippvm.lib, ipps.lib
Parameters
pSrc |
Pointer to the source image ROI. |
srcStep |
Distance, in bytes, between the starting points of consecutive lines in the source image. |
pDst |
Pointer to the destination image ROI. |
dstStep |
Distance, in bytes, between the starting points of consecutive lines in the destination image. |
pSrcDst |
Pointer to the source and destination mage ROI for the in-place operation. |
srcDstStep |
Distance, in bytes, between the starting points of consecutive lines in the source and destination image for the in-place operation. |
roiSize |
Size of the source ROI, in pixels. |
pSpec |
Pointer to the LUT specification structure. |
Description
Important
The API of this function has been modified in Intel IPP 9.0 release.This function operates with ROI (see Regions of Interest in Intel IPP).
Before using this function, you need to compute the size of the specification structure using the LUT_GetSize function and initialize the structure using LUT_Init.
This function performs intensity transformation of the source image pSrc using the lookup table (LUT) specified by the arrays pLevels, pValues, and interpolation type specified in the LUT_Init function when pSpec is initialized.

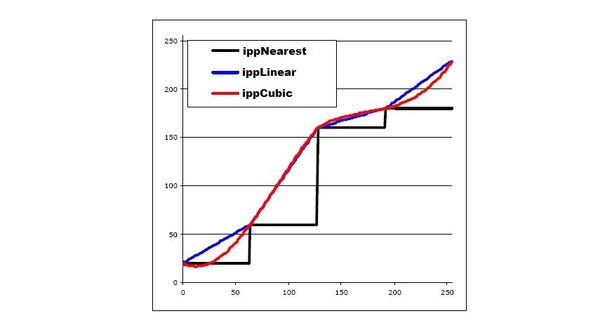

The figure below shows particular curves that are used in all the ippiLUT function flavors for mapping. The level values are 0, 64, 128, 192, 256; the intensity values are 20, 60, 160, 180, 230.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error or a warning. |
ippStsNullPtrErr |
Indicates an error when any of the specified pointers is NULL. |
ippStsSizeErr |
Indicates an error when roiSize has a field with a value less than 1. |
ippStsStepErr |
Indicates an error when srcStep, dstStep, or srcDstStep has a zero or negative value. |
ippStsBadArgErr |
Indicates an error when pSpec initialization is incorrect. |
Example
The code example below demonstrates how to use LUT_GetSize, LUT_Init, and ippiLUT functions.
#include "ippcore.h"
#include "ippi.h"
#include <iostream>
#include <iomanip>
void func_LUTLinear()
{
IppStatus status;
Ipp32f pSrc[8 * 8];
int srcStep = 8 * sizeof(Ipp32f);
IppiSize roiSize = { 8, 8 };
Ipp32f pDst[8 * 8];
int dstStep = 8 * sizeof(Ipp32f);
Ipp32f pLevels[5] = { 0.0, 0.128, 0.256, 0.512, 1.0 };
const Ipp32f* ppLevels[1] = { pLevels };
Ipp32f pValues[5] = { 0.2, 0.4, 0.6, 0.8, 1.0 };
const Ipp32f* ppValues[1] = { pValues };
int nLevels[1] = { 5 };
int specSize;
IppiLUT_Spec* pSpec;
status = ippiImageJaehne_32f_C1R(pSrc, srcStep, roiSize);
std::cout << "pSrc:\n";
for (int row = 0; row < roiSize.height; row++) {
for (int col = 0; col < roiSize.width; col++) {
std::cout << std::fixed << std::setprecision(2) <<pSrc[roiSize.width * row + col] << "\t";
}
std::cout << "\n";
}
ippiLUT_GetSize(ippLinear, ipp32f, ippC1, roiSize, nLevels, &specSize);
pSpec = (IppiLUT_Spec*)ippMalloc(specSize);
ippiLUT_Init_32f(ippLinear, ippC1, roiSize, ppValues, ppLevels, nLevels, pSpec);
status = ippiLUT_32f_C1R(pSrc, srcStep, pDst, dstStep, roiSize, pSpec);
std::cout << "pDst:\n";
for (int row = 0; row < roiSize.height; row++) {
for (int col = 0; col < roiSize.width; col++) {
std::cout << pDst[roiSize.width * row + col] << "\t";
}
std::cout << "\n";
}
ippFree(pSpec);
}
Result:
pSrc: 0.00 0.26 0.65 0.82 0.82 0.65 0.26 0.00 0.26 0.82 1.00 0.98 0.98 1.00 0.82 0.26 0.65 1.00 0.89 0.74 0.74 0.89 1.00 0.65 0.82 0.98 0.74 0.55 0.55 0.74 0.98 0.82 0.82 0.98 0.74 0.55 0.55 0.74 0.98 0.82 0.65 1.00 0.89 0.74 0.74 0.89 1.00 0.65 0.26 0.82 1.00 0.98 0.98 1.00 0.82 0.26 0.00 0.26 0.65 0.82 0.82 0.65 0.26 0.00 pDst: 0.20 0.61 0.85 0.93 0.93 0.85 0.61 0.20 0.61 0.93 1.00 0.99 0.99 1.00 0.93 0.61 0.85 1.00 0.95 0.89 0.89 0.95 1.00 0.85 0.93 0.99 0.89 0.82 0.82 0.89 0.99 0.93 0.93 0.99 0.89 0.82 0.82 0.89 0.99 0.93 0.85 1.00 0.95 0.89 0.89 0.95 1.00 0.85 0.61 0.93 1.00 0.99 0.99 1.00 0.93 0.61 0.20 0.61 0.85 0.93 0.93 0.85 0.61 0.20
