Restores unknown image pixels.
Syntax
IppStatus ippiInpaint_8u_C1R(const Ipp8u* pSrc, int srcStep, Ipp8u* pDst, int dstStep, IppiSize roiSize, IppiInpaintState_8u_C1R* pState);
IppStatus ippiInpaint_8u_C3R(const Ipp8u* pSrc, int srcStep, Ipp8u* pDst, int dstStep, IppiSize roiSize, IppiInpaintState_8u_C3R* pState);
Parameters
- pSrc
- Pointer to the source image ROI.
- srcStep
- Distance in bytes between starts of consecutive lines in the source image.
- pDst
- Pointer to the destination image ROI.
- dstStep
- Distance in bytes between starts of consecutive lines in the destination image.
- roiSize
- Size of the image ROI in pixels.
- pState
- The pointer to the inpainting structure.
Description
The function ippiInpaint is declared in the ippcv.h It operates with ROI (see Regions of Interest in Intel IPP).

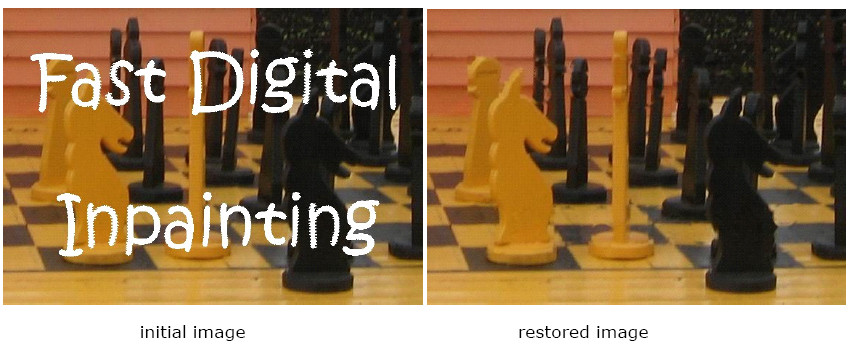

This function reconstructs damaged part of the image, or removes a selected object (see Figure “Image Inprinting”). The image part to restore is defined by the mask that is created when the inpainting structure pState is initialized by the function ippiInpaintInitAlloc. Different distant transforms can be used, but the Fast Marching Method (ippiFastMarching) provides the best results. The order of pixel restoration is defined by the distance through the initialization the inpainting structure pState by the function ippiInpaintInitAlloc. Pixels are restored in according to the growing of their distance value. When a pixel is inpainted, it is treated as the known one.
Two algorithms of direct inpainting are supported (controlled by the parameter flags of the function ippiInpaintInitAlloc):
- image restoration of the unknown pixel by the weighted sum of approximations by known pixels in the neighborhood (flags = IPP_INPAINT_TELEA) [Telea04,
- image restoration based on the Navier-Stokes equations (flags = IPP_INPAINT_NS) [Bert01].
The inpainting structure pState must be initialized by the function ippiInpaintInitAlloc, and may be used to perform restoration of several different images of the same size roiSize.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error or a warning. |
ippStsNullPtrErr |
Indicates an error condition if one of the specified pointers is NULL. |
ippStsSizeErr |
Indicates an error condition if roiSize has a field with zero or negative value, or if differs from the corresponding parameter that is specified when the inpainting structure is initialized by the ippiInpaintInitAlloc . |
ippStsStepErr |
Indicates an error condition if srcStep or dstStep is less than roiSize.width * < pixelSize>. |
