THIS FUNCTION IS DEPRECATED. Changes an image size.
Syntax
Case 1: Operation on pixel-order data
IppStatus ippiResize_<mod>(const Ipp<datatype>* pSrc, IppiSize srcSize, int srcStep, IppiRect srcRoi, Ipp<datatype>* pDst, int dstStep, IppiSize dstRoiSize, double xFactor, double yFactor, int interpolation);
Supported values for mod:
8u_C1R |
16u_C1R |
32f_C1R |
8u_C3R |
16u_C3R |
32f_C3R |
8u_C4R |
16u_C4R |
32f_C4R |
8u_AC4R |
16u_AC4R |
32f_AC4R |
Case 2: Operation on planar-order data
IppStatus ippiResize_<mod>(const Ipp<datatype>* const pSrc[3], IppiSize srcSize, int srcStep, IppiRect srcRoi, Ipp<datatype>* const pDst[3], int dstStep, IppiSize dstRoiSize, double xFactor, double yFactor, int interpolation);
Supported values for mod:
8u_P3R |
16u_P3R |
32f_P3R |
IppStatus ippiResize_<mod>(const Ipp<datatype>* const pSrc[4], IppiSize srcSize, int srcStep, IppiRect srcRoi, Ipp<datatype>* const pDst[4], int dstStep, IppiSize dstRoiSize, double xFactor, double yFactor, int interpolation);
Supported values for mod:
8u_P4R |
16u_P4R |
32f_P4R |
Parameters
pSrc |
Pointer to the source image origin. An array of separate pointers to each plane in case of data in planar format. | ||||||||||
srcSize |
Size in pixels of the source image. | ||||||||||
srcStep |
Distance in bytes between starts of consecutive lines in the source image buffer. | ||||||||||
srcRoi |
Region of interest in the source image (of the IppiRect type). | ||||||||||
pDst |
Pointer to the destination image ROI. An array of pointers to separate ROI in each planes for planar image. | ||||||||||
dstStep |
Distance in bytes between starts of consecutive lines in the destination image buffer. | ||||||||||
dstRoiSize |
Size of the destination ROI in pixels. | ||||||||||
xFactor, yFactor |
Factors by which the x and y dimensions of the source ROI are changed. The factor value greater than 1 corresponds to increasing the image size in that dimension. | ||||||||||
interpolation |
Specifies the
interpolation mode. Use one of the following values:
|
Description
Caution
THIS FUNCTION IS DEPRECATED. Please use the function ippiResizeSqrPixel instead.
The function ippiResize is declared in the ippi.h file. It operates with ROI (see ROI Processing in Geometric Transforms).

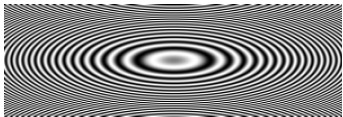

This function resizes the source image ROI by xFactor in the x direction and yFactor in the y direction. The image size can be either reduced or increased in each direction, depending on the values of xFactor, yFactor. The result is resampled using the interpolation mode specified by the interpolation parameter, and written to the destination image ROI. Supersampling interpolation can be applied if both xFactor and yFactor are less than or equal to 1. Figure “Sample Image Changed by the ippiResize Function” shows the result of applying the ippiResize function to the sample image of size 256 by 256 pixels. The destination image is of 300 by 100 pixels size.
The following code Example “Resizing an Image” shows how to use the ippiResize function:
Resizing an Image
IppStatus resize( void ) {
Ipp8u x[8*8], y[8*8];
IppiSize srcsz={8,8}, dstroi={6,6};
IppiRect srcroi={1,1,6,6};
IppiSize roi = {8,8};
int i;
for( i=0; i<8; ++i ) {
ippiSet_8u_C1R( (Ipp8u)i, x+8*i+i, 8, roi );
--roi.width;
--roi.height; }
return ippiResize_8u_C1R( x, srcsz, 8, srcroi, y, 8, dstroi, 2.9, 2, IPPI_INTER_NN );
}
The image has the following contents after resizing:
01 01 01 01 01 01 CC CC
01 01 01 01 01 01 CC CC
01 01 02 02 02 02 CC CC
01 01 02 02 02 02 CC CC
01 01 02 02 02 03 CC CC
01 01 02 02 02 03 CC CC
CC CC CC CC CC CC CC CC
CC CC CC CC CC CC CC CC
This function is used in the H.264 encoder included into Intel ® IPP Samples downloadable from http://www.intel.com/cd/software/products/asmo-na/eng/perflib/ipp/index.htm.
Return Values
ippStsNoErr |
Indicates no error. Any other value indicates an error or a warning. |
ippStsNullPtrErr |
Indicates an error condition if pSrc or pDst pointer is NULL. |
ippStsSizeErr |
Indicates an error condition if srcSize or dstRoiSize has a field with zero or negative value. |
ippStsWrongIntersectROIErr |
Indicates an error condition if srcRoi has no intersection with the source image. |
ippStsResizeNoOperationErr |
Indicates an error condition if one of the destination image dimensions is less than 1 pixel. |
ippStsResizeFactorErr |
Indicates an error condition if xFactor or yFactor is less than or equal to zero. |
ippStsInterpolationErr |
Indicates an error condition if interpolation has an illegal value. |
